Products Technical Specifications

Technical Specifications of Full-Range Products

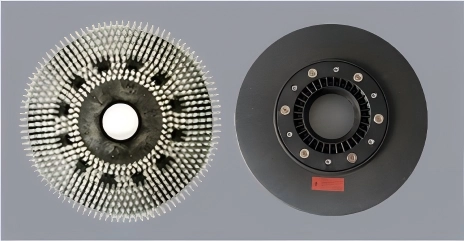

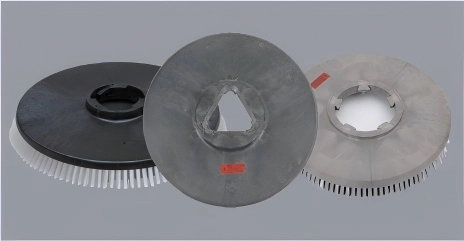

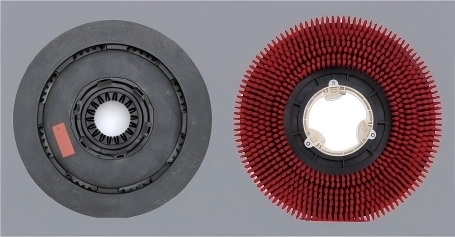

Disc Brush

Parameter	Specification Range	Remarks
Filament Material	PP, PA	Single/mixed material customization available
Filament Diameter	0.5mm	Compatible with most industrial cleaning equipment speeds
Block Size (Inch)	11, 13-21	Covers mainstream models, customizable
Filament Color	Red/Black, Pure Black	Color-coded for scenarios (e.g., red/black for oil-contaminated areas)
Manufacturing Process	Integral Injection Molding	Filament shedding rate 0.1%, high firmness

Installation & Operation Points

Key specs like filament materials, dimensions, and operational parameters are optimized for durability and compatibility, with non-standard customization available.

Shampoo Brush

Parameter	Specification Range	Core Advantages
Filament Material	PP (0.28mm), PA (0.5mm)	PP for soft cleaning, PA for enhanced durability
Block Size (Inch)	14, 15, 15.5, 16, 17, 18, 19, 19.75	Compatible with carpet cleaners, 15.5 inch bestseller
Filament Structure	Pentagon, Ring	Uniform shampoo distribution, cleaning efficiency +15%
Applicable Equipment	Industrial Carpet Cleaners	Requires matching equipment power ≥1.5kW

Installation & Operation Points

Break-in before use: Run dry on unpolished concrete for 15-20 minutes to remove manufacturing burrs (avoids carpet scratches);
Rinse filaments with clean water after use to prevent residue and bacterial growth.

Pad Driver

Parameter	Specification Range	Type Differences
Block Size (Inch)	9.6, 11-19.75 (full size)	14-17 inches most commonly used
Material	High-Strength Polypropylene	Impact-resistant, non-brittle at -20℃
Fixing Method	MAL-LOK Tufting, Hook Design	MAL-LOK for automatic machines, hooks for small equipment
Height	1.5cm, 3cm (standard)	Customizable 2-5cm

Application Selection

Single cleaning (dust removal): 1.5cm model (lightweight, easy consumable replacement);
Combined cleaning + polishing: 3cm model (high stability, suitable for 300-500r/min high-speed polishing).

Grit Rotary Brush

Parameter	Specification Range	Technical Description
Filament Type	Grit, Steel Wire	Grit for fine cleaning, steel wire for heavy dirt
Grit Specification	.070"/46 to .018"/500	Diameter/particle size combination (customizable)
Block Size (Inch)	9.6, 11-19.75	Universal with pad driver, interchangeable
Max Tolerable Temperature	80℃ (grit), 120℃ (steel wire)	Excessive temperature damages filaments

Operation Specifications

Must be used wet: Add 5-10L clean water per hour (prevents silicon carbide overheating);
Rinse filament gaps with high-pressure water after use (avoids residual scratches);
Apply anti-rust oil to steel wire models monthly.

PAD CENTERING DEVICES

Model	Applicable Equipment	Material	Installation Method
CZ-L1	Small Cleaners ()	ABS Engineering Plastic	Snap-on, tool-free
CZ-L2	Medium Cleaners (1-2kW)	Reinforced Nylon	Screw-fixed (4mm hex wrench required)
CZ-L3	Large Cleaners (2-3kW)	Aluminum Alloy	Bolt-fixed (6mm wrench required)
CZ-L4	Custom Equipment	304 Stainless Steel	Custom-designed mounting structure

Core Functions

Centering accuracy ±0.5mm (avoids uneven cleaning from eccentricity);
Shock absorption (vibration reduced by 20%, protects equipment bearings).

Clutch Plate Technical Parameters

Model Range	Applicable Brush Disc Size (Inch)	Material	Torque Tolerance
CZ-01-CZ-10	11-17	High-Friction Nitrile Rubber + Steel Plate	50-100N·m
CZ-11-CZ-20	18-19.75	Silicone + Aluminum Alloy Plate	100-150N·m
CZ-21-CZ-23	Custom Size	Carbon Fiber + Stainless Steel Plate	150-200N·m

Maintenance Tips

Replace every 6-12 months (immediate replacement if cracked or worn > 2mm);
Temperature resistance: Nitrile rubber (80℃), silicone (120℃), carbon fiber (200℃).

Driver

Core Component	Specification Parameter	Performance Advantage
Motor	DC 12V/24V	Adjustable speed (0-300r/min), noise dB
Transmission Structure	Gear Reducer	Reduction ratio 5:1-10:1, torque amplified for heavy loads
Housing Material	PP + Glass Fiber Engineering Plastic	IP54 waterproof, impact-resistant, outdoor-compatible
Connection Interface	Standard ISO Interface	Compatible with most equipment, easy replacement

Application Scenarios

Automatic Cleaning Robots: 12V model (standby current < 10mA, battery life up to 8h);
Large Sweepers: 24V model (torque 150N·m, compatible with 21-inch brush discs).

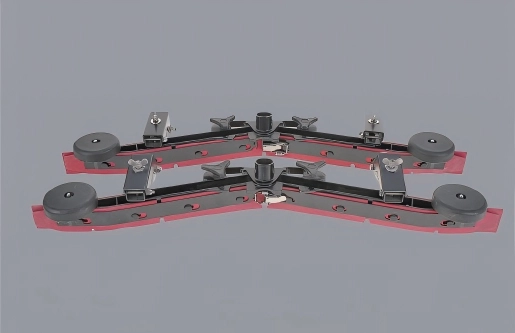

Squeegee Assembly

Component	Specification Parameter	Technical Highlight
Connection Nozzle	Integral Metal Die-Casting	Aluminum alloy, weld-free, water leakage .1L/h
Structural Design	Arc, V-Shape	Arc for flat surfaces, V-shape for non-slip tiles
Applicable Equipment	Floor Scrubbers, Sweeper-Scrubbers	Interface diameter 50-100mm, customizable
Weight	1.5-3kg (by size)	Lightweight design, minimal equipment load

Installation & Use

Adjust angle to 15-30° (excessive angle causes incomplete water scraping; insufficient angle wears rubber strips);
Replace sealing ring every 3 months (check for leaks regularly).

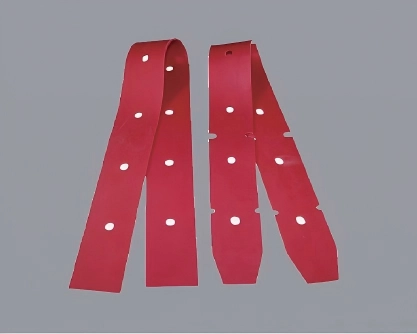

Squeegee Rubber

Type	Material	Wear Coefficient (mm³/1000 Cycles)	Oil Resistance	Applicable Scenario	Price Range (CNY/Meter)
Polyurethane Strip	Polyester-Based Polyurethane	5-8	Grade A (Mineral Oil Resistant)	Factory/garage oily floors	30-50
Standard Rubber Strip	Natural Rubber + SBR	10-15	Grade C (Non-Oil Resistant)	Mall/hotel smooth tile floors	10-20

Maintenance Tips

Wear: Replace when thickness reduces from 10mm to
Functional Failure: Replace if residual water width > 5mm, or if leakage/scraping streaks occur.

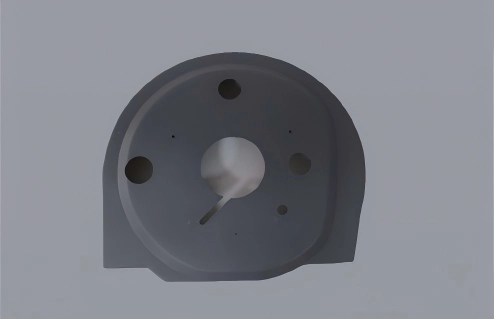

Brush Housing Head

Material Type	Composition	Physical Property	Applicable Scenario
Aluminum Alloy	6061 Aluminum Alloy	Tensile strength 276MPa, corrosion-resistant	Outdoor large sweepers
Iron	Q235 Low-Carbon Steel	Hardness HB195, high load-bearing capacity	Industrial heavy-duty equipment
Plastic	PP + 30% Glass Fiber	Impact strength 15kJ/m², -30℃ non-brittle	Household/small cleaners

Customization Services

Color: Pantone color code customization (e.g., RAL9005 Black);
Structure: Custom interface size/fixing holes (7-15 day lead time).

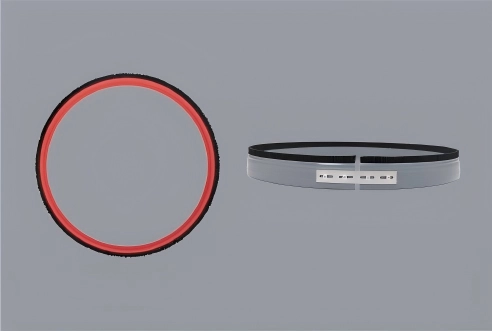

Bumper Head

Parameter	Specification Range	Technical Feature
Material	Elastic Rubber (Shore A50-60)	Impact-absorbent, 100% recovery after collision
Compatible Brush Disc Size	13-21 Inches	Ring structure, full brush disc edge coverage
Installation Method	Snap + Screw Fixation	Installation , easy disassembly
Temperature Resistance	-20℃ to 80℃	Stable elasticity in extreme temperatures

Core Functions

Water blocking height ≥5cm (prevents sewage splashing);
Reduces brush disc damage rate (from 15% to 3%).

Hose

Type	Material Structure	Performance Indicator	Specification Range
Drain Hose	PVC + Glass Fiber + Inner Steel Wire	Water pressure resistance ≥1MPa, pH 2-12 acid/alkali resistant	Inner diameter 20-50mm, length 1-5m
Vacuum Hose	PVC + Glass Fiber + Spiral Steel Wire	Negative pressure resistance ≥0.08MPa, UV4 grade	Inner diameter 30-80mm, length 2-10m

Advantages

Smooth inner wall (Ra .8μm) reduces scaling/clogging;
5-year outdoor anti-aging (twice the service life of standard PVC hoses).

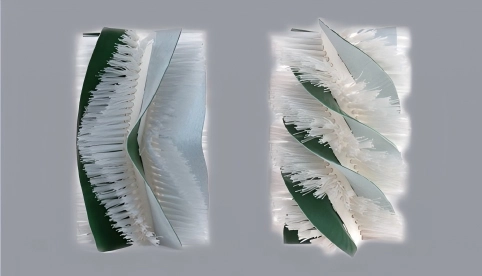

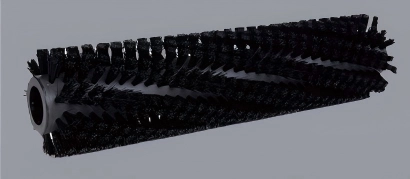

Roller Brush

Parameter	Specification Range	Customization Option
Roller Material	Lightweight Polymer (0.9-1.1g/cm³)	UL94 V0 flame-retardant customization available
Filament Material	PP, PA, Polyester, Abrasive Nylon	2-3 material mixing supported

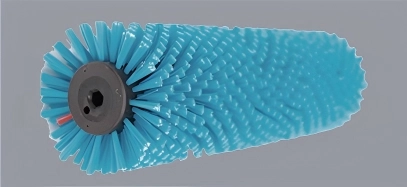

Filament Pattern	Spiral, Herringbone, Wavy	Custom pattern design available
Length	300-2000mm	Custom accuracy ±1mm

Selection Recommendations

Linear cleaning (production lines): Spiral pattern (no missed areas);
All-around cleaning (warehouses): Herringbone pattern (360° decontamination, efficiency +20%);

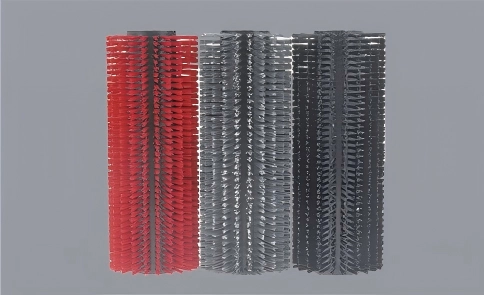

Precision cleaning (electronics factories): High-density surrounding pattern (100 filaments/cm²).

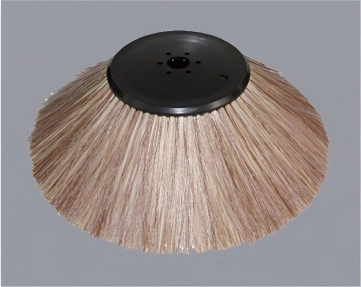

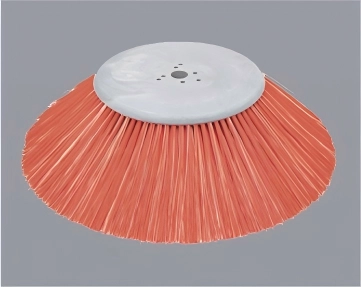

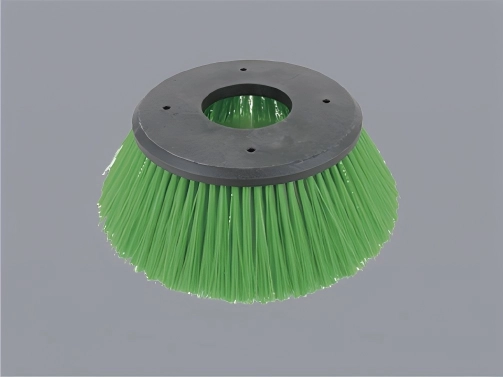

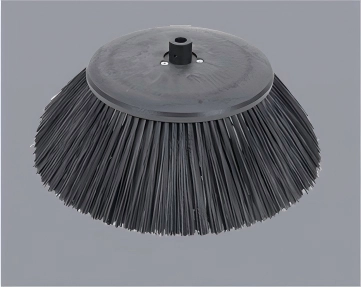

Sweeper Side Brush

Type	Filament Material	Brush Disc Material	Specification (Diameter/Length)
Full PP Type	PP (1.2-3mm)	Plastic (24-30mm thick)	200-400mm / 50-100mm
Mixed Curved-Straight Type	PP/PA/Steel Wire	Plastic/Aluminum Alloy	250-500mm / 60-120mm
Clutch Plate Type	PP/PA	Reinforced Plastic	300-600mm, compatible with CZ-01-CZ-10

Features

Full PP Type: Lightweight < 500g, low-cost (for kW small sweepers);
Mixed Type: Curved filaments gather dirt, straight filaments clean dead corners (95% coverage).

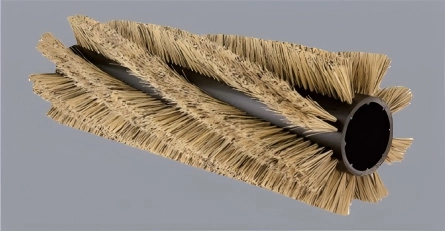

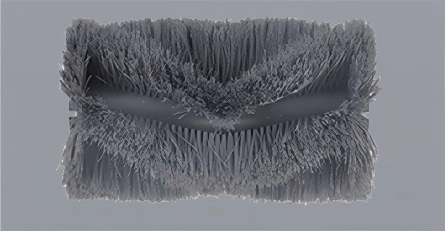

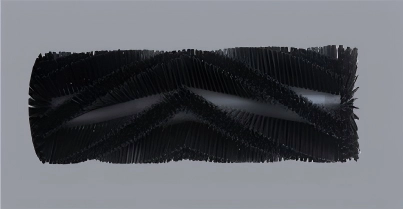

Sweeper Main Broom

Parameter	Standard Model	Hand-Push Model
Filament Material	PP/PA/PBT/Steel Wire	Mixed PP
Filament Pattern	Double-Row 6-Group V-Shape	Double-Row 8-Group Spiral
Roller Material	High-Strength Lightweight Polymer	Lightweight Plastic
Length	600-2000mm	300-600mm

Material Adaptation

PP: Universal, low-cost (not for >60℃ environments);
PA: Wear/high-temperature resistant (for rough surfaces/steel mills);
Steel Wire: Removes stubborn dirt (solidified cement) – use with scratch protection.

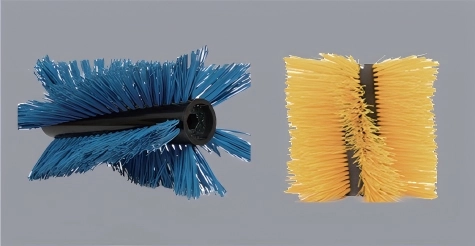

Wafer Brush

Type	Filament Material	Structural Parameter	Applicable Equipment
Standard Type	PP (1-3mm)/Steel Wire (0.7mm)	Double-Row Spiral, diameter > main brush	Universal sweepers
Ring Type	PP/Steel Wire	Inner diameter 77-300mm, width 15-30mm	JetBroom-Boschung & similar brands

Application

Suitable for industrial workshops/large warehouses, especially >1.5m wide surface cleaning.

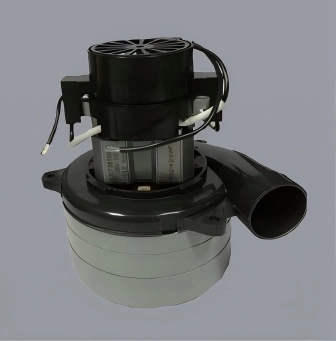

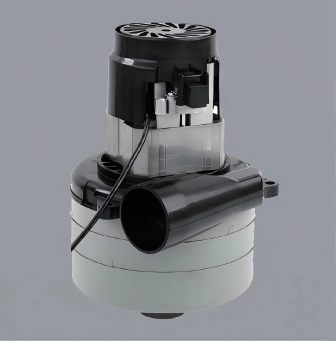

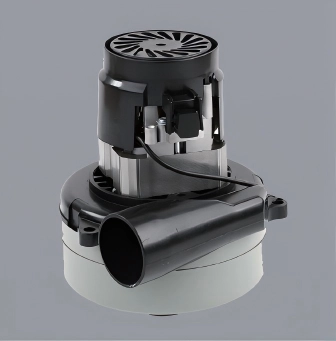

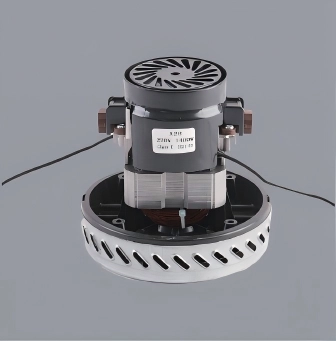

Vacuum Motor

Parameter	Specification Range	Performance Indicator
Coil Material	Pure Copper	Conductivity 58MS/m, long service life > 3000h
Capacitor	1-5μF Filter Capacitor	Stabilizes voltage, prevents motor fluctuation
Stage	2-Stage, 3-Stage	2-Stage: ≥18kPa vacuum; 3-Stage: ≥25kPa
Power Supply Voltage	220V (Single-Phase), 380V (Three-Phase)	110V export model (customizable)

Maintenance Tips

Prohibit no-load operation (speed > 5000r/min burns coils);
Clean air intake filter every 200h (prevents dust-clogged vacuum loss);
Replace bearings every 1000h (check for abnormal noise > 75dB).

Cleaning Brush Selection & Safety Guidelines

(1) Scientific Selection

By Cleaning Requirement

Single Function (carpet cleaning/dusting): Use specialized brushes (shampoo/disc brushes).
Multi-Function (cleaning+polishing+stripping): Choose pad drivers (adaptable via different pads).
Dirt Level:
- Light (dust): PP/Proex filaments
- Medium (oil/fine sand): PA filaments
- Heavy (stubborn stains/oxide scales): Grit/steel wire filaments

By Equipment Matching

Provide Brand+Model: Match block size (tolerance ≤1mm), center hole (50-80mm), clutch plate (e.g., CZ-05 for 15-inch discs).
No Model Info: Provide equipment power (e.g., 2kW) + installation space for custom adaptation.

By Environment

High-Temp (>60°C): PA/steel wire (avoid PP/Proex deformation).
Wet (>70% humidity): Mildew-proof Proex/nylon.
Oily: Polyurethane squeegee + oil-resistant PA filaments.
Dust-Free (e.g., electronics factories): Union fibre (low dust emission).

(2)Safety Specifications

General Requirements

Avoid flammables (fuels/solvents) to prevent fires.
Wear goggles/gloves when using steel wire/grit brushes.
Inspect filaments/clutch plates before use (stop if abnormal).

Special Operations

Grit Brushes: Must be wet (5-10L water/hour) – dry use shortens life by 80% and scratches surfaces.
Steel Wire Brushes: Prohibited on marble/glass/painted surfaces (repair cost: 200-500 CNY/m²).
Shampoo Brushes: Break in (15-20min dry run) before carpet use (unbroken filaments damage 30% of carpets).

Industry Trends & Changzhong Advantages

(1)Industry Trends

Eco-Materials: Recyclable PP/biodegradable fibers (EU bans non-degradable filaments in 2025).
Intelligence: Wear sensors for real-time life monitoring (cuts maintenance costs by 30%).
Efficiency: Polygonal/hollow filaments boost cleaning efficiency by 20-30% >500r/min equipment).

(2)Changzhong Advantages

R&D: In-house lab tests 12 material indicators; 2-3 new materials/year (e.g., 2024 recyclable PA).
Customization: Full-chain customization (100-piece MOQ, 7-15 day lead time; industry avg: 20-30 days).
Quality: ISO9001-certified; 100% batch inspection; 0.5% defect rate (industry avg: 1.5%).
Capacity: 20,000㎡ base; 30 automated lines; 10,000+ daily output; <7-day delivery (3 days for urgent
